Your Full Network Partner
Passive » Optical Fiber
Lifetime Guarantee

Optical Fiber

FONSBD is the exclusive authorized dealer for Optical Fiber Cable and FTTX Products of world renowned brand, Fujikura. Japan.

The important objective for optical cable design is to Project fibers so that they can be operated safely in a complicated environment for long period of time. FONSBD has been trying to provide all kinds of optical cables to their clients with protected but precise construct design, state of art process control and high quality material and the cable lifetime is guaranteed.

Type of Fiber Optic Cable


Typical Optical Fiber Cable Specification

Parameter Value
Type of Cable Duct, Direct Burial, Aerial, Indoor
Number of Fiber 1 to144, 216,496, 1000 (Microduct Optical Fiber)
Fiber Type G 6527A lUT-T G 652, G 652 D,G 653, G 654
Loose tube Material PBTP, Nylon, High Modular Plastic
Water Resistance Thixotropic Jelly
Strength Members FRP, Aramid Yarn, Glass Fiber Reinforcements, Steel Wire
Moisture Barrier Water Swellable tape, Flooding Jelly
Armouring Material Copolymer Coated S.S tape, Copolymer Coated ECCS tape
Sheath/Jacket Compound PVC, HDPE, LSZH
Attenuation at 1310 nm dB/km <0.36 for G 562
Att enuation at 1550 nm dB/km <0.25 for G 562
Temperature of Operation -40 ?c-+70?c
Tensile Stength (N) As per IEC 794-1-El
Crush Resistance (N) As per IEC 794-1-El
Minimum Bending Radius (mm) As per IEC 794-1-Eli


Model Aluminum Tape Layer Loose Tube Outdoor Cable

Application Characteristics

  • Adopted to outdoor distribution.
  • Suitable for aerial pipeline laying method.
  • Long distance and local area network communication.
  • Steel wire strength tiller protect tube fiber. Aluminum tape armored.
  • Good ultra violet radiation resistant property.
  • Good moisture-resistance.


Steel Tape Layer Loose Tube Outdoor Cable

Application Characteristics

  • Adopted to outdoor distribution.
  • Suitable for aerial pipeline laying method.
  • Long distance and local area network communication.
  • Steel wire strength filler protect tube fiber steel tape armored.
  • Good ultra violet radiation resistant property.
  • Good moisture-resistance.

Fujikura Optical Fiber

Application

  • Adopted to Outdoor distribution.
  • Adopted to trunk power transmission system.
  • Access network and local network in high electromagnetic interfering places.


Characteristics

  • Non-metal strength member,
  • Filler protect loose tuber fiber.
  • Non-metal strength has an excellent anti-electromagnet ability.

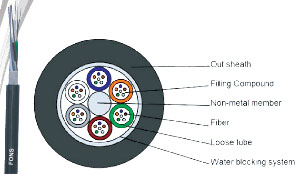

Central Loose Tube Outdoor Cable, GYXTW Fiber optic GYXTW cable is an outdoor use optical fiber cable suitable for duct and aerial applications. GYTA, Aluminum Longitudinal Layer Stranded Optic Cable, fiber optic cable GYTA is Adopted to Outdoor distribution, long distance and local area network.
GYTS, Steel Tape layer Loose Tube Outdoor Cable, fiber optic cable GYTS
Suitable for long distance and area network communication.
 Dielectric Loose Tube Cable, tber optic cable GYFTY is adopted to Outdoor distribution. Suitable for Aerial, trunk power transmission system. Access network.

GYTY53, Armored and Double Sheathed Outdoor Calbe, Armored and Double Sheathed Outdoor Calbe, GYTY53 ber optic cable ¡s direct buried underground.

 GYFTY53, China optical fiber cable GYFTY53 Manufacturers, China optical fiber cable GYFTY53 Suppliers, offer quality optical fiber cable GYFTY53.

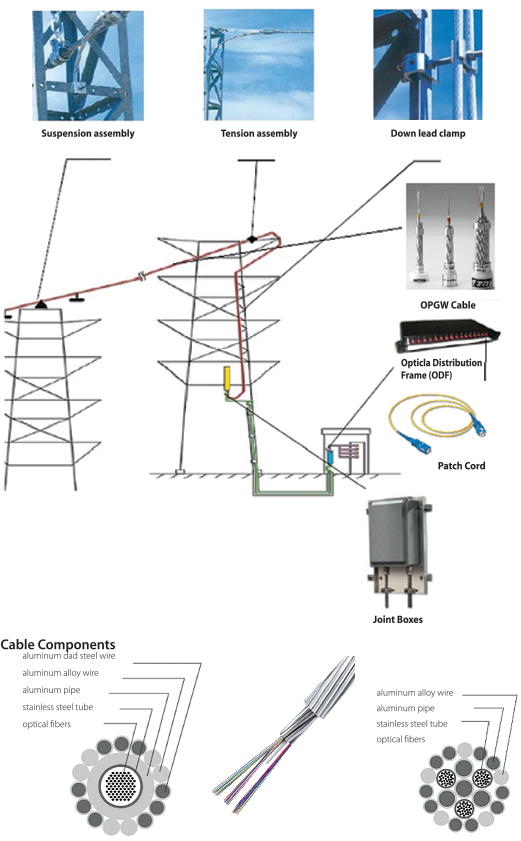

OPGW Cable & Accessories

High strength and lightweight for superior quality

FONS is the dealer of Fujikura OPGW Cable & Accessories. Fujikura aluminum clad steel products are manufactured with a high-purity aluminum powder compacted around a high-strength steel rod. With subsequent applications of heat and pressure, a bimetallic rod with a dense, inseparably welded cladding is obtained.


Fujikura OPGW product features include:

  • Industrial, semi-industrial and marine environments
  • Superior to aluminized steel
  • Lightweight Extra high strength steel but weighs 15% less
  • Fiber counts up to 432 or custom designs
  • High load, long span capability.

networks on high voltage overhead lines

FONS OEM Optical Fiber Cable

Low CAPEX

FONSBD is a professional OEM/ODM manufacturer of optic fiber cables. We are the first optical fiber cable OEM in Bangladesh with more than 15 years of experience. Famous worldwide companies and local telecom are our main customers. We provide durable and stable products to customers with reasonable Optical Cable price.

Optical Characteristics
Fiber Sort Multimode G.651 Al a:50/l 25 Duct, Direct Burial, Figure-8, Aerial & Indoor
Al b:62.5/l 25
Singlemode G.652D oose tube material PBTP, Nylon, HMP
  Clading Diameter-i 25+ 1 µm Cut-off wavelength shifted
Core concentricity error≤O.6 µm Zero dispersion shifted
Claddding non-circularity ≤1 .0% Strength member’s: FRP, Armid Yarn, Glass
Fiber Reinforcements, Steel Wire


Non-metal Central Loose Tube Out Cable, GYFXTY, Characteristics:

  • Non-metal strength member.
  • Filler protect loose tuber fiber.
  • Non-metal strength has an excellent anti-electromagnet ability.

Application

  • Adopted to Outdoor distribution.
  • Adopted to trunk power transmission system.
  • Access network and local network.
  • Model Figure 8 self-supporting cable.
  • Adopted to Outdoor distribution.
  • Suitable for aerial duct and buried method.
  • Long distance and local area network communication.

Characteristics

  • Stainless steel or galvanized steel self-supporting.
  • Excellent mechanical and environmental performance.

GYXTW, Central Loose Tube Outdoor Cable, GYXTW, Fiber Optic Application

  • Adopted to Outdoor distribution.
  • . Suitable for aerial pipeline laying method.
  • . Long distance and local area network communication.

Characteristics

  • Steel-wire parallel memberfiller
  • protect tube fiber steel tape armored.
